Manufacturer China Body Lotion Soft Tube Filling Sealing Machine with Ce



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BNF80
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Rotary
Packaging:
Tube
Packaging Material:
Soft-Tube
Model:
Bnf-60
Productivity:
30-50PCS/Min
Name:
Soft Tube Filling Sealing Machine
Packing Mateiral:
Plastic Tube or Laminated Tube
Inside Heating Way:
Hot Air Heating for Inside Sealing
Filling Material:
Paste , Cream,Ointment
Keywords:
Tube Filling Sealing Machine
Range of Tube Diameter:
10-35mm for Metal Tube
Range of Filling Volume:
1-150 for Metal Tube
Motor:
1.1kw
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Automatic
Material Type:
Paste
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Capacity Cup

Product Description

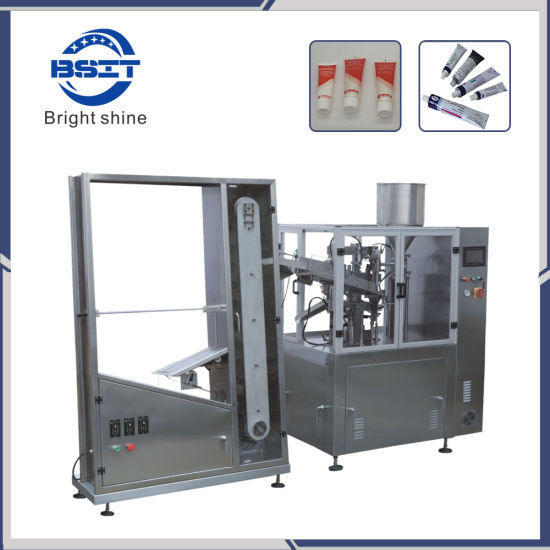

Manufacturer China Body Lotion Soft Tube Filling Sealing Machine with Ce

Introduction:

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Feature:

This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for plastic tube, laminated tubes, It is a multi-purpose machine.
Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
Double-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.

High Speed Inner Heating Soft Plastic Laminated Tube Filling and Sealing Machine (BGNY)

Manufacturer China Body Lotion Soft Tube Filling Sealing Machine with Ce

Sample:

NF-60A
	Configuration Standard	Technical Parameters	Remarks
Infrastructure
	Main Machine Landing Area	(about) 2m2
	Working Area	(about)12m2
	Water Chiller Landing Area	(about)1m2
	Working Area	(about)2m2
	Whole Machine (L×W×H)	1950×1000×1800mm
	Integrated Structure	Union mode
	Weight	(about)850Kg
Machine case body
	Case Body Material	304
	Opening Mode of Safety Guard	Handle Door
	Safety Guard Material	Organic Glass
	Frame Below Platform	Stainless Steel
	Case Body Shape	Square-shape
Power, Main Motor etc.
	Power Supply	50Hz/380V 3P
	Main Motor	1.1KW
	Hot Air Generator	3KW
	Water Chiller	1.9KW
	Jacket barrel heating power	2 KW	Optional Additional cost
	Jacket barrel blending power	0.18 KW	Optional Additional cost
Production Capacity
	Operation Speed	30-50/min/max
	Filling Range	Plastic/laminated tube 5-250ml
	Suitable Tube Length	Plastic/laminated tube 50-210mm	Pipe length more than 210mm should customize
	Suitable Tube Diameter	Plastic/laminated tube 13-50mm
Pressing Device
	Pressing Guiding Main Component	CHINA
Pneumatic Control System
	Low Voltage Protection	CHINA
	Pneumatic Component	AIRTAC
	Working Pressure	0.5-0.7MPa
	Compressed Air Consumption	1.1m³/min
Electrical Control System
	Control Mode	PLC+Touch Screen
	PLC	TAIDA
	Frequency inverter	TAIDA
	Touch Screen	WE!NVIEW
	Coder	OMRON
	Filling detect Photo electric cell	CHINA
	Total Power Switch etc.	ZHENGTA
	Color Code Sensor	JAPAN
	Hot Air Generator	LEISTER (Switzerland)
Suitable Packing Material & Other Devices
Suitable Packing Material		Aluminum-plastic composite tube and Plastic composite tube
Obliquely Hanging Lining-up Tube Storehouse		Speed Adjustable
Material contacting with filling material		316L Stainless Steel
Jacket layer hopper device		Temp. Setting according to material and filling demand		Additional cost
Jacket layer stirring device		In case of no material mixing, it remains fixed in hopper		Additional cost
Auto stamping device		Single side or double sides printing at the end of seal tube.		Double sides additional cost

Due to the continuous improvement of the equipment, if part of the electrical changes without notice.
