Automatic Metal Tube Filling and Sealing Machine for Lotion Toothpaste (BNF-80)



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
30 Sets/Year
Payment Terms:
T/T, Western Union, Paypal, Money Gram
Model NO.:
BNF-80
Packaging Material Mechanical Properties:
Soft Plastic Tube or Aluminum Tube
Material Type:
Paste
Model:
Bnf-80
High Speed Capacity:
80-100 PCS/Min
Materical:
SUS304 or SS316
Filling Range:
Plastic/Laminated Tube 5-250ml
Suitable Tube Length(Max):
Plastic/Laminated Tube 210mm
Suitable Tube Diameter:
Plastic/Laminated Tube 13-50mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422400000
Packaging:
Bottles
Automatic Grade:
Automatic
Packaging Material:
Plastic
Application:
Cosmetics, Cleaning, Detergent, Skin Care Products, Hair Care Products, Fish, Meat, Snack, Rice, Flour
Usage:
Outpacking
Type:
Filling and Sealing Machine

Product Description

High Speed good quality cream Metal Tube Sealing Machine (BNF-80 )

Feature:

1. Automatic bar code aligning, especially for oval shape tube
2. Hot air heating for inside sealing and looping cooling water for outside to promise good appearance
3. Dangerous gas generated during the sealing process to be ventilated out through ventilator
4. Change parts promise wide range of diameter of tube
Filling, sealing, batch No. Coding to be incorporated in one machine
5. Tube auto-loading.
7. The total production capacity can be set manually.
9. No tube no filling

Automatic Metal Tube Filling and Sealing Machine for Lotion Toothpaste (BNF-80)

Introduction:

This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It's ideal equipment for plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond industries.

Feature:

This Product have 9 stations, can choose different station and equip corresponding manipulator to meet different type of tail folding, sealing requirement for plastic tube, laminated tubes, It is a multi-purpose machine.
Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
Tube storage can through motor to adjust up-down height as per different tube length. And can With external reversal feeding system, makes tube charging more convenient and tidy.
The mechanical linkage photo sensor precision tolerance is less than 0.2mm. reduce the chromatic aberration scope between tube and eye mark.
Light, electric, pneumatic integrative control, No tube, no filling. Lower pressure, auto display (alarm); The machine stop automatically if tube error or open the safety door.
Double-layer jacket instant heater with inside air heating, it won't damage the pattern outer wall of tube and achieves firm and beautiful sealing effect.

High Speed Inner Heating Soft Plastic Laminated Tube Filling and Sealing Machine (BGNY)

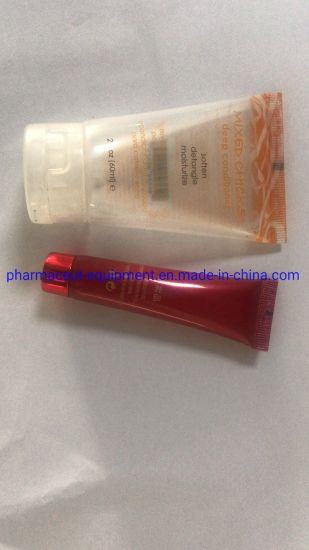

Sample:

Main technical data:

BNF-80A
		Configuration Standard	Technical Parameters	Remarks
Infrastructure
		Main Machine Landing Area	(about) 3m²
		Working Area	(about)15m2
		Water Chiller Landing Area	(about)1M2
		Working Area	(about)4 M2
		Whole Machine (L×W×H)	2.2X1.2X1.9M
		Integrated Structure	Union mode
		Weight	(about)1200Kg
Machine case body
		Case Body Material	304
		Opening Mode of Safety Guard	Handle Door
		Safety Guard Material	Organic Glass
		Frame Below Platform	Stainless Steel
		Case Body Shape	Square-shape
Power, Main Motor etc.
		Power Supply	50Hz/380V 3P
		Main Motor	1.5KW
		Hot Air Generator	3KW
		Jacket barrel heating power	2 KW	Optional additional price
		Jacket barrel blending power	0.18 KW	Optional additional price
Production Capacity
		Operation Speed	50-75/min/max
		Filling Range	Plastic/laminated tube 5-250ml
		Suitable Tube Length(max)	Plastic/laminated tube 210mm
		Suitable Tube Diameter	Plastic/laminated tube 13-50mm
Pressing Device
		Pressing Guiding Main Component	SMC
Pneumatic Control System
	Low Voltage Protection		SCHNEIDER
	Pneumatic Component		SMC
	Working Pressure		0.5-0.6MPa
	Compressed Air Consumption		1.5m³/min
Electrical Control System
	Control Mode		PLC+Touch Screen
	PLC		SIEMENS
	Frequency inverter		SIEMENS
	Touch Screen		SIEMENS
	Coder		OMRON
	Filling detect Photo electric cell		OMRON
	Total Power Switch etc.		MOELLER
	Color Code Sensor		BANNER
	Hot Air Generator		LEISTER	Switzerland
	Color code finding Servo motor		YASKAWA
Suitable Packing Material & Other Devices
Suitable Packing Material			Aluminum-plastic composite tube and Plastic composite tube
Obliquely Hanging Lining-up Tube Storehouse			Speed Adjustable
Material contacting with filling material			316L Stainless Steel
Jacket layer hopper device			Temp. Setting according to material and filling demand	Optional additional price
Jacket layer stirring device			In case of no material mixing, it remains fixed in hopper	Optional additional price
Auto stamping device			Single side or double sides printing at the end of seal tube.

Due to the continuous improvement of the equipment, if part of the electrical changes without notice.
