YK
BSIT
shanghai seaport china
100 sets/year
T/T
1 set
wooden packing

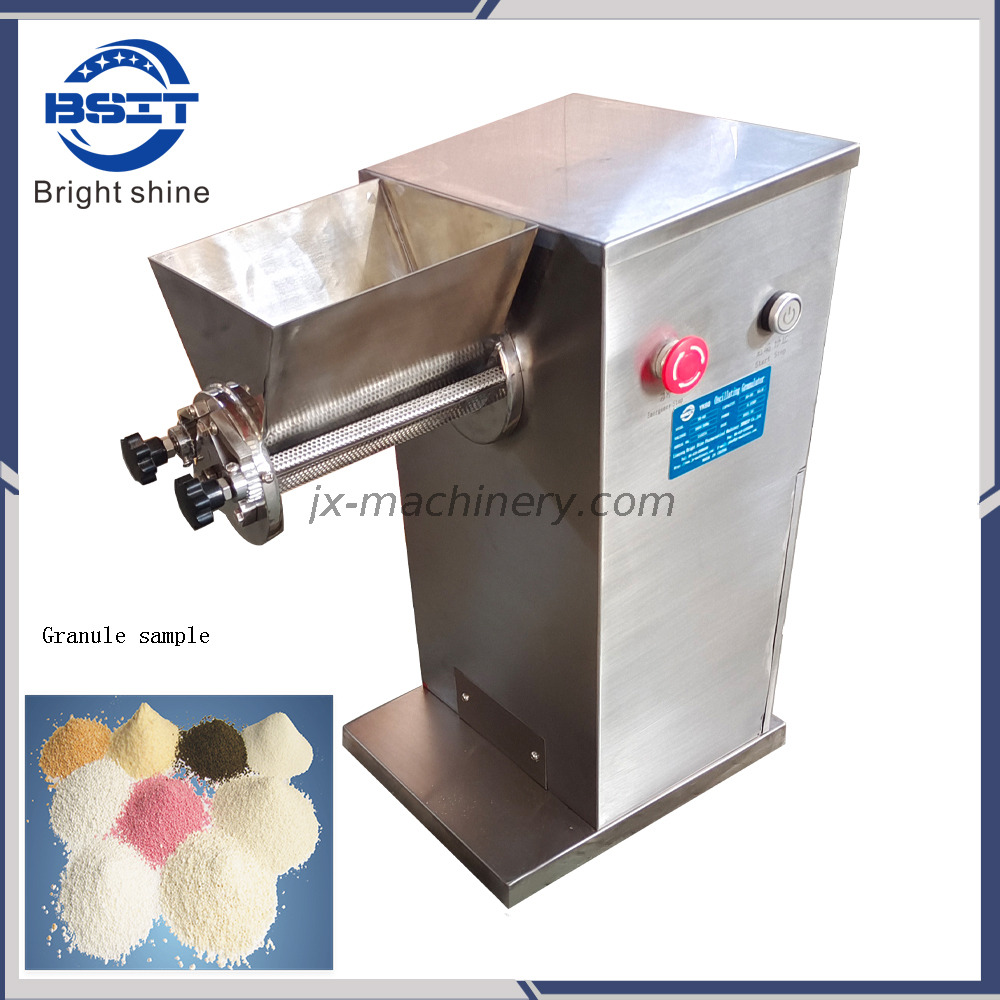

Yk Model good quality Granulation Machine of Waving Type/Oscilating Granulator
Application:
The machine is special equipment. Under the action of barrel through clockwise and counterclockwise rotation, the machine can make mixture of damp powder pass through forcibly sieve to become granule The machine is mainly suitable for granulating granule with different specification in pharmaceutical industry, chemical industry, foodstuff industry etc. After dried by baking, press the granule to all kinds of shaped product. Stainless steel sieve is made of SUS304/SS316
Features:
1) The machine design: The material of extrude granulator is stainless steel SUS304.
2) Output 200-300 kg per hour
2) The machine can move
3) With cap on the container
4) Safety screen
5) Gearing inside the machine should be full closed
7) Sieve 1, 5 mm 1, 0mm, 1, 8mm (stainless steel)
8) discharge sleeve (to connect bin and discharge hole)
9) gearbox should closed
Technique Parameter:
Model | YK60 | YK90/YK100 | YK160 |
DIA rotor(mm) | 60 | 90-100 | 160 |
Capacity (kg/h) | 20-30 | 50-100 | 200-300 |
Rang of wave | >360° | >360° | >360° |
Number of times of waving rolingly | 46 | 50 | 55 |
Motor power(kw) | 0.25 | 0.55 | 2.2 |
Weight (kg) | 55 | 150 | 330 |
Overall size(mm) | 320mm×560mm×600mm | 460mm×750mm×840mm | 8460mm×850mm×940mm |
