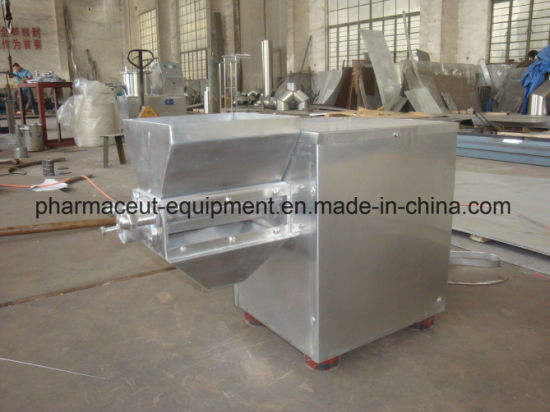

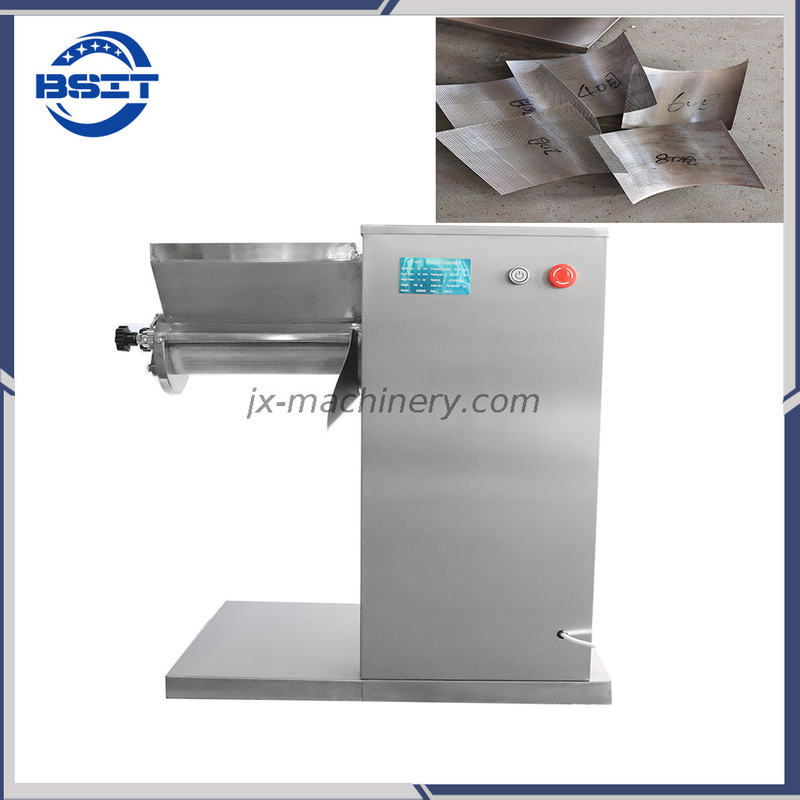

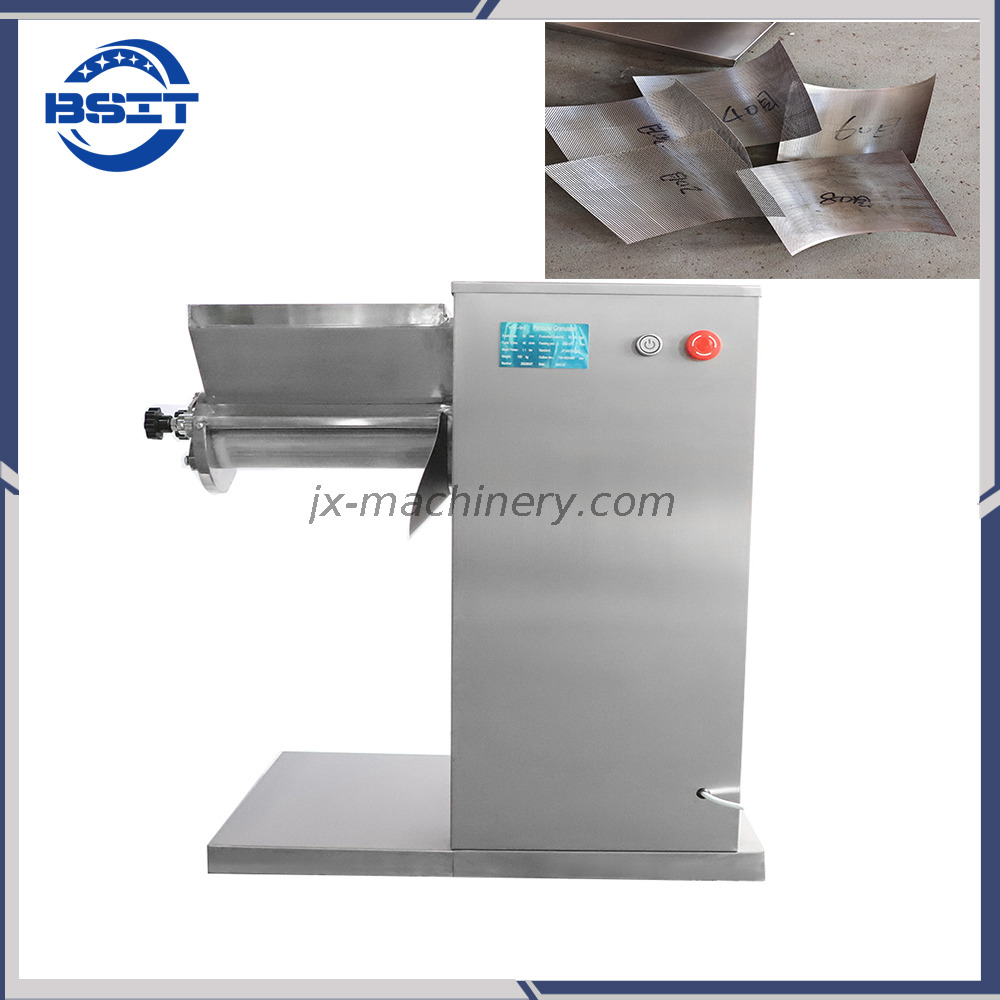

YK CGMP standards high quality Factory Price Oscillating Granulator Machine
Introduce:
The Swing Granulator is the desired machinery in the pharmaceutical, food, instant soluble powder, chemical, solid drinks and other industries
Features:
1.This Swing granulating equipment makes use of the rolling motion of rotating barrel, granulating the wet powder materials into granule by sieve. It also can be used for crushing the agglomerate material into small granules directly
2. In chemical medicine field, it can be used for granulating the mixed powder into granule, and compressed into tablet after being dried. Moreover, it can be used to granulate the coagulated material that is formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products, in other industries. It can be used for granulating such as porcelain and plastic mixtures into forming granules.
3. It is not suitable for solid, fluid medium, paste or pulverizing.
4. Its mesh number of meshed sieve should be prepared by users themselves according to the size of granule.
Sample:
1) The machine design: The material of extrude granulator is stainless steel SUS304.
2) Output 200-300 kg per hour
2) The machine can move
3) With cap on the container
4) Safety screen
5) Gearing inside the machine should be full closed
7) Sieve 1, 5 mm 1, 0mm, 1, 8mm (stainless steel)
8) discharge sleeve (to connect bin and discharge hole)
9) gearbox should closed
Technical parameters:
| Model | YK100 | YK160 |
| Capacity (kg/batch) | 30-200 | 200-300 |
| Rotating speed of platen (rpm) | 55 | 65 |
| Power ( kw ) | 1.1 | 2.2 |
| angle of sway (& deg; ) | 360 | . 360 |
| Dia of platen ( MM ) | 100 | 160 |
| weight(kg) | 180 | 350 |
| Overall dimensions (mm) | 700 × 400 × 1050 | 1000X800X1300 |
