FZG-15
BSIT
Shanghai, China
50 Sets/Year
T/T
1 set
wooden case packing

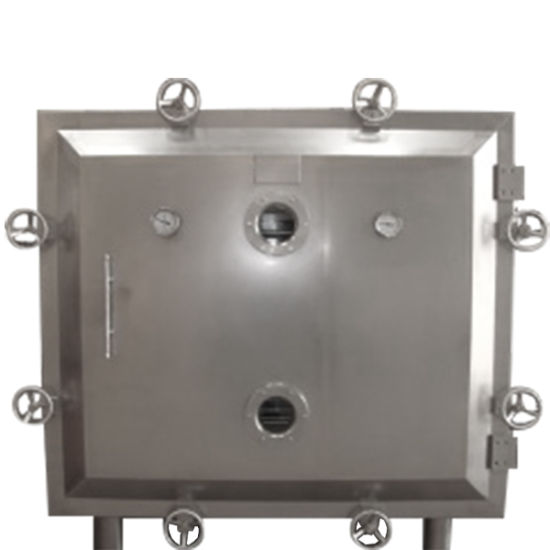

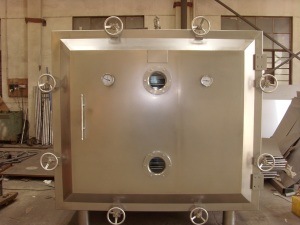

Pharmaceuitcal Food Square Vacuum Dryer (FZG-15)
Features:
1: 6mm304-2B, 1.5mm304-2B, , , -0.098MPa, Inside of chamber materical use SS304-2B (6mm), outside packing adopt by 304-2B(1.5mm) stainless steel made. Inside of welding polisher treatment. Outside is brush treatment in order to confirm vacuum degree is -0.098Mpa. Also has certificate of material.
2: Each design Dryer before and back sight glass in order to check inside of materical changed.
3: Dryer heating baking tray holder is for movable model can discharge quick in order to clean inside of remains product.
4: 120mm. Heating baking tray holder total 8 layers, distance of baking shelf for 120mm.
5: Body of door pivot adopt by flat bearing in order to no plane wear open or close door.
6: Body of inside 4 angle all made of slippy R, up part is arch model no burnisher and no roughness.
7: Dryer has movable baking tray holder, SS baking tray, Vavuum Gauge, Exhaust valve.
8: ≤ 120 degree. Dryer used temperature is≤ 120 degree
9: Dryer is chinese-english (manual user's) a copy, certificat of quality a copy, packing list a copy.
10: Equipment had English brand
12: Dryer no with any electric equipment or link attachment device.
13: DN15. Dryer inlet and outlet for flange DN15.
14: Dryer used by wooden case packing
Main technical data:
square model machine drawing as reference:
round model machine drawing as reference:
No | Name | model and specification | quantity | supplier |
| 1 | Outside of dryer materical | 304-2B stainless steel 1.5mm | 8 | CHINA wuxi |
| 2 | Inside of dryer materical | 304-2B stainless steel 6.0mm | 2 | CHINA wuxi |
| 3 | Door board | 304-2B stainless steel 1.5mm | 1 | china wuxi |
| 4 | 316L SS baking tray | 460*640*45mm | 32 pcs | press tray |
| 5 | Strengthen plate | Q235 10mm | N | China nanjing |
| 6 | Strengthen Channel steel | 8# channel steel | 17 | China nanjing |
| 7 | Door hinge | 304-2B SS | 2 | self-made |
| 8 | Door press | 304-2B SS | 4 | self-made |
| 9 | door sealing | mushroom model silicon rubber | 1 | China changzhou |
| 10 | Vacuum interface | 304-2B SS (DN50) | self-made | |
| 11 | Vacuum gauge | -0.01~-0.1MPa | 1 | China shanghai |
| 12 | sight glass | dia: 150×15mm | 4 | China nanjing |
| 13 | dobule metal thermometer | WSS-150 | 1 | China shanghai |
