Laboratory Small Capacity Pharmaceutical Suppository Filling Sealing Machine



Inquire Add to Basket

Port:
Dalian, China
Production Capacity:
20 Sets/Year
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
ZSA
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Empty Suppository Belt
Packaging Material:
Plastic
Product:
1000-2000 PCS/H
Control System:
PLC
Dosage Per Granulation:
0.5-4ml
Filling Error:
+-5%
Suppository Form:
Bullet Form, Torpedo Form
Center Distance:
17.5mm
Number of Mould :
1 Granulation
Packing Materical Height:
58mm , Thickness 0.14mm+-0.01mm
Volume of Barrel:
10L
Size:
2700X1000X1800mm
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
Meet GMP Standard
Origin:
Made in China
HS Code:
8422303090
Type:
Volumetric Filling Machine
Automatic Grade:
Fully Automatic
Material Type:
Suppository Material
Filling Valve Head:
Single-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plunger

Product Description

ZSA laboratory suppository filling and sealing is our company digested and absorbed abroad advanced technology and bond internal suppository
producing practice to manufacture and develop.

The equipment is made of four parts:
1. Suppository belt machine
2. Suppository filling machine
3. Suppository condensation tunnel
4. Suppository sealing machine.

It can complete making shell, filling, cryo-stereotypia and sealing. The machine is made of plc, hmi, because of its full-featured, small volume,
low production, so it is used for research institutes and hospital preparations
Working routing and principle:

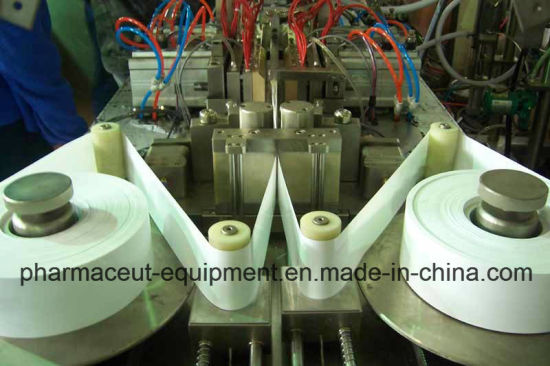

The rolled plastic sheet material (pvc or pvc/pe) preheatedsolder blow and make a statue to take shape shearing the lower side filling
cryo-stereotypia preheatedsealing beating batch number shearing the upper side counting and shearing
Working principle:
The rolled plastic sheet material (pvc or pvc/pe) is pressed positively to blow and make a statue to take shape, and enter into filling procedure
automatically, stirred equally drug fluid is filled to nul nutshell automatically through high precise dosing pump, and is sheared into multi-strip
iso-segment. Then it will become solid cork granulation through much time cryo-stereotypia which will realize conversion from fluid to solid.
At last, it will be produced to end product suppository by mending form, sealing, beating batch number and shearing working procedure.

Technical characteristic:

1. Using plc and hmi, easy to operate, high degree of automatization.
2. Using inset filling, accurate in position, non-dribbling drug, non-hanging wall.
3. Be wide in suitability, can be used to fill high gluing degree gelatin group and the traditional chinese medicine ware.
4. Barrel has a heated reservoir and blender.

production	1000-2000 granulatiron/h
Dosage per granulation	0.5-4ml
filling error	+-5%
suppository form	bullet form, torpedo form
center distance	17.5mm
number of mould	1 granulation
packing materical height	58mm , thickness 0.14mm+-0.01mm
volume of barrel	10L
height of hopper	1500mm
voltage	380V,50HZ,3P
Power	7kw
Air pressure	0.55-0.65mpa
Air consumption	1.0m3/min
size	2700x1000x1800mm
