RC-1
BSIT
Shanghai, China
7 Sets/Week
T/T, Western Union

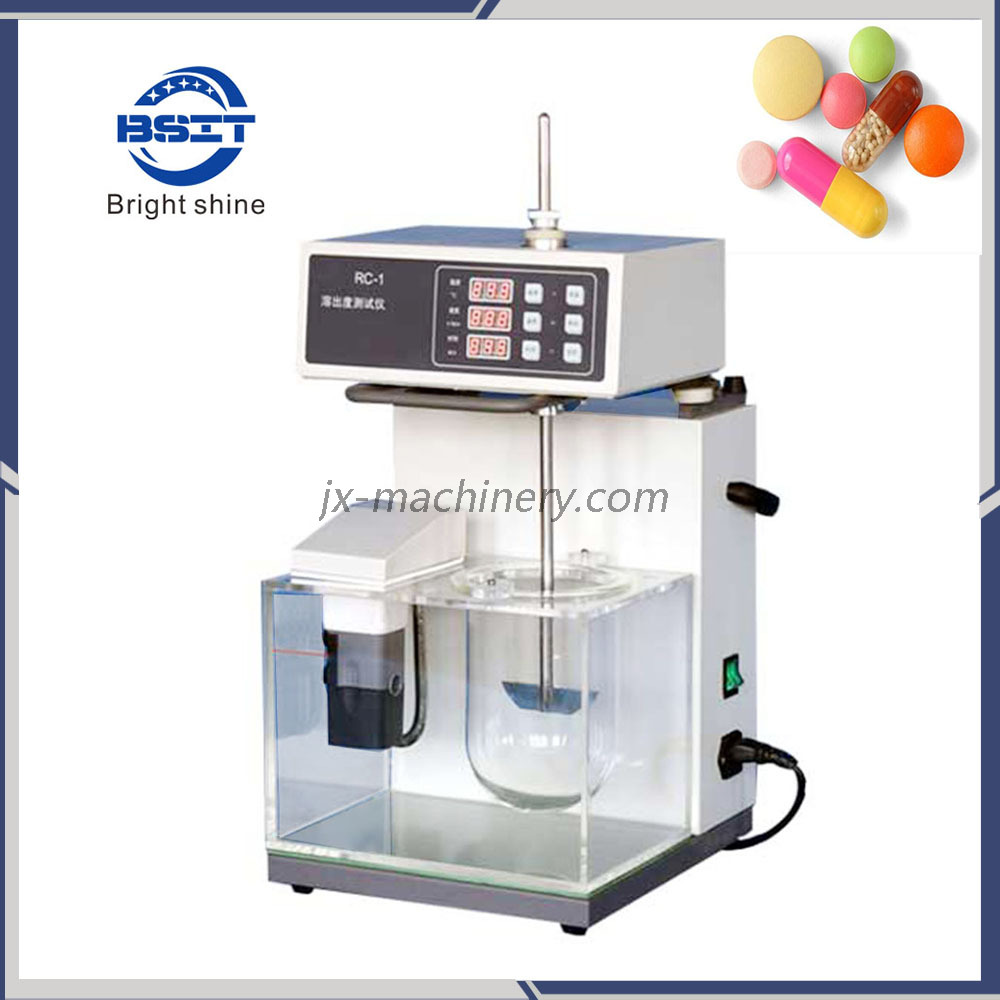

Lab Equipment Dissolution Tester for Tablet RC-1
Product Description:
RC series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc in prescriptive menstruum.
Applicable standards:
National standard( Chinese codex ) /2015
Corporate standard(Dissolution tester )Q/12XQ0187-2010
Features:
It has one vessels and one poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter :
| Speed range | (20~200)rpm |
| Speed accuracy | ±2rpm |
| Temperature range | ambient to +45.0ºC |
| Temperature Stability ±0.3ºC | ±0.3ºC |
| Preset timing | Six points (5~900)min |
| Time accuracy | ±0.3% |
| Basket radial run-out | ±1.0mm |
| Paddle radial run-out | ±0.5mm |
| Heating power | 500w |
| Working time continuously | More than 24hours |
| Power | 220V50Hz ,600W |
| Dimension | 260×300×480mm3 |
wooden case packing
carton packing sample:
