Hot Sale Plastic Ampoule Liquid Forming Filling Sealing Machine for Electronic Cigarette Oil



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
20 Sets/Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
DSM
Packing Material :
PVC/PE or Pet/PE
Power:
3.5kw
Material:
SS316 Contact with Liquid
Filling Liquid:
Pharmaceutical, Cosmetic, Oral, Oil, Pesticide
Power Supply:
220V.50Hz, 1p
Net Weight :
350-450
Automatic Grade:
Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Multi-Room Feeding
Dosing Device:
Plunger
Filling Principle:
Vacuum
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Bottle
Packaging Material:
Plastic
Trademark:
BSIT
Transport Package:
Export Standard Wooden Case
Specification:
meet with GMP standards
Origin:
Made in China
HS Code:
8422400000
Name:
Plastic Ampoule Filling Sealing Machine
Keywords:
Vape Cartridge Filling Machine
Suitable Ampoule Volume:
2-25ml/Ampoule
Cutting Frequency:
0-50 Time
Filling Head:
2 and 5 and 10 and 15 Filling Heads
Capacity:
50-100PCS/Min

Product Description

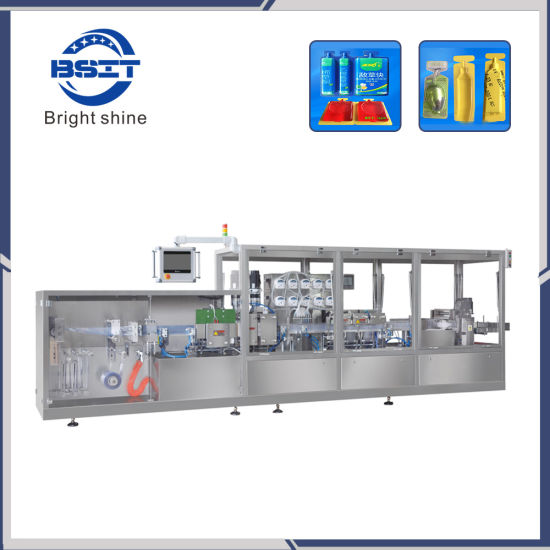

Plastic Ampoule Washing Lotion Forming Filling Sealing Machine

Machine main Advantage:

1.DSM-120 Micro Liquid Forming Filling & Sealing Machine is applicable for liquid, sticky, semi-sticky and so on.

2.This machine can be used for pharmaceuticals, food, health care products, cosmetic. It also can be used in industry and agriculture in similarity products.

3. This machine can finish forming, filling,sealing ,cutting once time.
4. our machine has 2 filling head, 5 filling head, 10 filling head, 15 filling head. you can choose freely according to difference capacity
5. Meet with CE certificate and GMP standards

2 filling head plastic ampoule filling machine working video please check https://youtu.be/laeN9l3s3d4
5 filling head plastic ampoule filling machine working video please check https://youtu.be/N0t2_QKAC-4
10 filling head plastic ampoule filling sealing machine working video please check: h ttps://youtu.be/hOlET10kpOo

Related plastic ampoule forming filling sealing machine

Description:

Take out the film, Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically. Save cost and time.
This machine is applied to fill liquid or semiliquid, such as oral liquid, oil, cosmetic
(shampoo, cream) and honey etc.
This machine is widely used in pharmacy, daily cosmetic, petrochemical and foodstuff etc industries.

Features:

1. Controlled by PLC, the frequency conversion in finely variable speeds.
2. All 6 processes from spreading roll, AMP bottle forming, filling, sealing the end,
printing serial numbers, cutting the end ,cutting apart, controlled by programming.
3. The computer human interface has simple and clear operation.
4. The filling head does not drop, leak, rise in bubbled and spill over.
5. All are made of high-quality stainless steel, accord with the standard GMP.
6. Mostly pneumatic components and wirings adopt inward fittings.
7. Automatic and mechanical filling, precise calculation and limited deflection.

Technical Parameter:

Model	DSM-120(Two filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	50bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	350kg
Overall size	1800x800x1400mm

Model	DSM-120(Five filling nozzles)
Maximum forming depth	12mm
Cutting frequency	0-25time
Maximum capacity	100bottles/min
Packing material	PVC/PE film(0.2-0.4)x120mm
Filling volume	2-25ml/bottle
Power	3.5Kw
Power supply	AC,220V/50Hz 1Phase or customization
Net weight	450kg
Overall size	2200x900x1500mm
