CT electric heating Hot Air Circulation Oven Chinese pharmaceutical Herbal Food Fruit Drying Machine
Introduction:

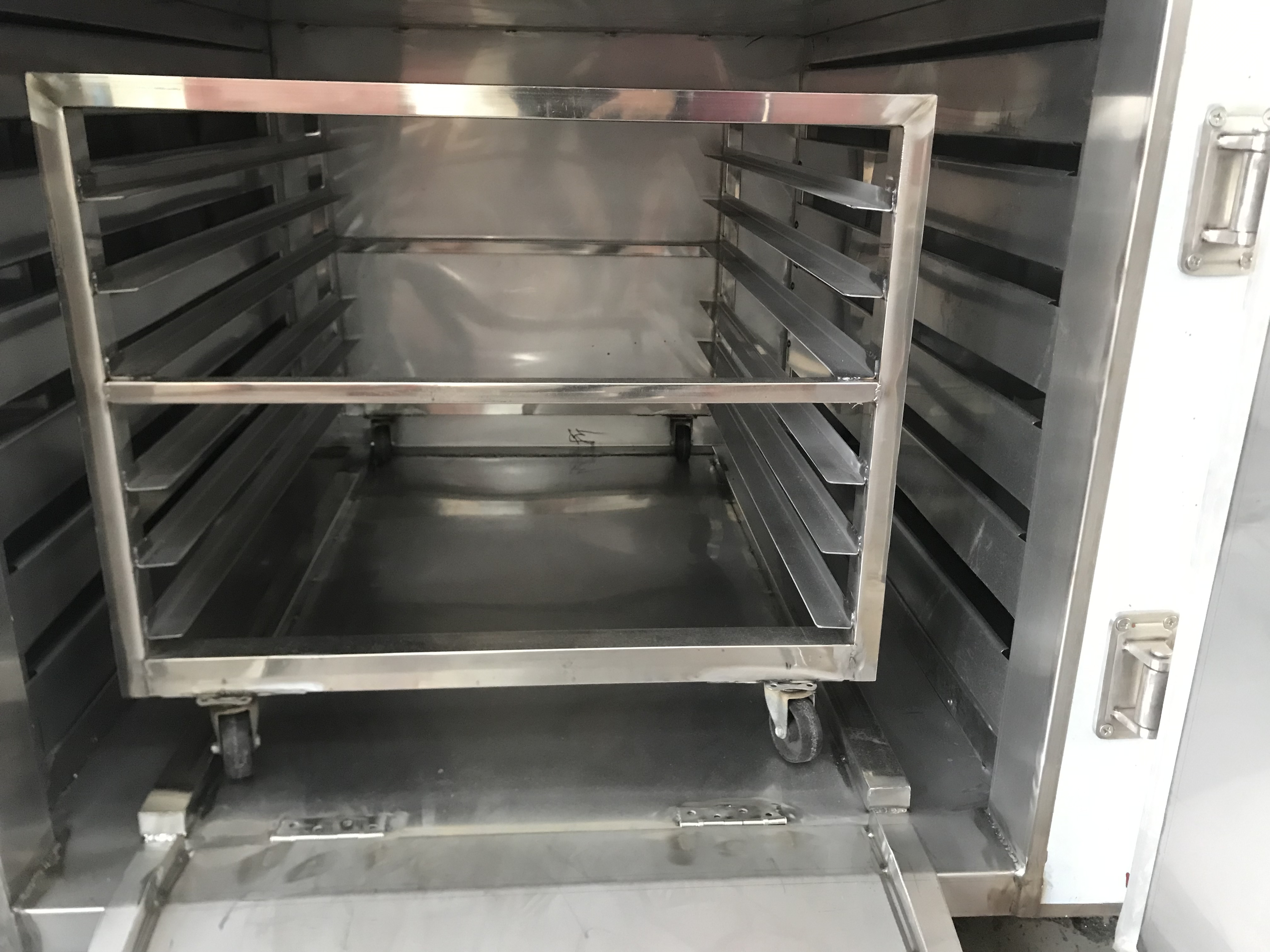

CT Hot Air Circulating Drying Oven equipped with system of low noise, hot resisting axial-flow fan and automatically temperature controlled device. The whole circulatory system is in a totally closed situation, so the thermal efficiency can reach beyond 80%. This device saves a great deal of energy and raises the company’s economic efficiency.
Feature: Suitable for heat curing, drying and dehydration of materials and products in the pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry and other industries. Such as raw materials, crude drugs, Chinese Herbal Medicine, extracts, powders, granules, granules, water pills, bottles, pigment dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking and so on.
Working Principle:
CT series Hot Air Circulating Drying Oven this adopt axle shed the air blower all, worthy of using the automatic thermostatically control system, there are control systems of a computer that for choosing. Thermal efficiency up to 70% to be about, it utilize steam or electricity heat source, flow with axle air blower heat exchanger convection change hot way heat air correctly, the laminar flow of hot air carries on heat to transmit with supplies through baking one. The fresh air is supplemented from entering the draught, abolish the damp and hot air to discharge from arranging the wet mouth, supplement fresh air with discharge damp and hot air constantly , is it keep oven proper relative humidity to come like this constantly. The greatest characteristic of this serial ovens is that some hot wind carries on circulation in the case, the whole cyclical process is closed, thus strengthened and conducted heat, has economized the energy.
Technical Parameter:
Model | Dry amount kg/time | Power(kw) | Consumption of steam (kg/h) | Amount of tray (pc) | Overall dimensions (mm) | Amount of trolley （pc） | Weight(kg) |
CT-I | 100 | 1.1 | 20 | 48 | 2430X1200X2375 | 2 | 1200 |
CT-II | 200 | 1.1 | 40 | 96 | 2430X2200X2433 | 4 | 1500 |
CT-III | 300 | 2.2 | 60 | 144 | 3430X2200X2620 | 6 | 2000 |
CT-IV | 400 | 2.2 | 80 | 192 | 4380X2200X2620 | 8 | 2300 |
CT-C-O | 25 | 0.45 | 5 | 8 | 1200X1000X1750 | 0 | 800 |
CT-C-IA | 50 | 0.45 | 10 | 24 | 1400X1200X2000 | 1 | 1000 |
CT-C-I | 100 | 0.45 | 18 | 48 | 2300X1200X2000 | 2 | 1500 |
CT-C-II | 200 | 0.9 | 36 | 96 | 2300X2200X2000 | 4 | 1800 |
CT-C-IIA | 200 | 0.9 | 36 | 96 | 4460X1200X2290 | 4 | 1800 |
CT-C-III | 300 | 1.35 | 54 | 144 | 3300X2200X2000 | 6 | 2200 |
CT-C-IIIA | 300 | 1.5 | 54 | 144 | 2300X3220X2000 | 6 | 2200 |
CT-C-IV | 400 | 1.8 | 72 | 192 | 4460X2200X2290 | 8 | 2800 |
