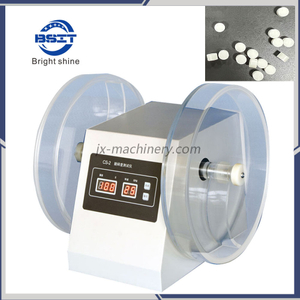

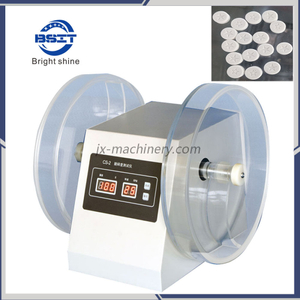

CS-2 High Quality hot selling Friability Digital Test Tablet Friability Tester
Product Description
CS series of instruments are used for detecting friability of tablet.
Applicable standards
National standard( Chinese codex ) /2015
Corporate standard(Friability tester )Q/12XQ0189-2010
Features
Two drums run synchronously. Auto stop at timing point.
The drum is made of high quality hyaline acryl.
The speed and revolution of the drum is constant, either preset or real data is displayed on the LED.
A MPU is used to control all operations, high accuracy is achieved in testing rotary speed and circle number.
Automation: auto-test, auto-diagnose, auto-alarm.
Technical Parameter:
| Cylinder number | 2 |
| Cylinder inner diameter | Φ286mm |
| Cylinder depth | 39mm |
| Tablet fall height | 156mm |
| Rotation speed | 25rpm |
| Rotation Speed accuracy | ±1rpm |
| Rotation count | 100r |
| Rotation count accuracy | ±1r |
| Power | 220V/ 50Hz/ 40W |
| Dimension | 370×300×340mm3 |
Carton package
Wooden case package for more than 3sets of testers
Technical Parameter for CS series friability Tester:
| Model | CS-1 | CS-2 | CS-3 | CS-4 |
| Cylinder number | 2 | 2 | 2 | 1 |
| Cylinder inner diameter | Φ286mm | Φ286mm | Φ286mm | Φ286mm |
| Cylinder depth | 39mm | 39mm | 39mm | 39mm |
| Tablet fall height | 156mm | 156mm | 156mm | 156mm |
| Rotation speed | (20-90)rpm | 25rpm | 25rpm | 25rpm |
| Rotation Speed accuracy | ±1rpm | ±1rpm | ±1rpm | ±1rpm |
| Rotation count | (10~900)r | 100r | 10-900r | 100r |
| Rotation count accuracy | ±1r | ±1r | ±1r | ±1r |
| Power | 220V/ 50Hz/ 60W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 40W | 220V/ 50Hz/ 50W |
| Dimension | 370×300×340)mm3 | 370×300×340mm3 | 370×300×340mm3 | 300×200×340mm3 |
